SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve

UPVC/CPVC materials exhibit corrosion resistance, making them suitable for transporting various corrosive media such as acidic and alkaline solutions and chemical liquids. The UPVC/CPVC pneumatic ball valve features a compact structure, small footprint, and convenient installation and maintenance.

The valve’s opening and closing are controlled by a pneumatic device, offering easy and fast operation, suitable for industrial automation and remote control. High-quality sealing materials ensure good sealing performance when the valve is closed, preventing media leakage.

Kontakt os

Tidligere：UPVC/CPVC elektriske drevne ventiler
Næste：SCH8O/DIN UPVC/CPVC kurvfilter

parameter anvendelse Tekniske standarder

(1) Material: UPVC, CPVC
(2) Dimensions: 1/2"- 4", DN15-DN100, DN20-DN110
(3) Standards: ANSI, DIN
(4) Connection: Socket
(5) Work pressure: 150PSI, 1.0MPa
(6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
(7) Minimum air pressure: 45PSI, 0.4MPa
(8) Body color: UPVC (dark gray), CPVC (light gray)

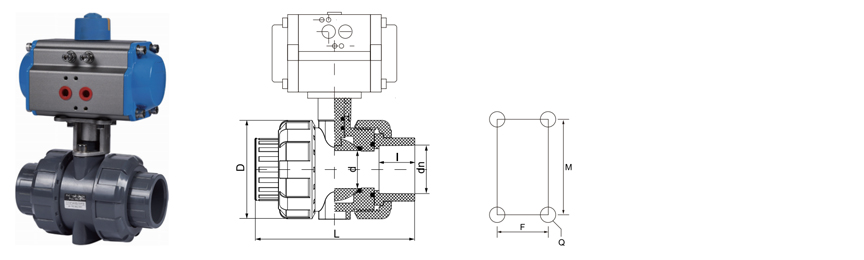

SIZE/NOM.		dn20	dn25	dn32	dn40	dn50	dn63	dn75	dn90	dn110
		(DN15)	(DN20)	(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)
		(1/2")	(3/4")	(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")
DIN ANSI JIS	I	22	22	25	28	31	38	44	51	61
	D	56	63	75	88	99	117	141	164	202
	L	103	117	133	149	165	190	235	270	320
	M	31	33	40	52	52	70	84	84	121
	F	-	-	-	-	-	-	45	45	49
	Q	2×M6	2×M6	2×M6	2×M8	2×M8	2×M8	4×M10	4×M10	4×M10
	Torque (N ·M)	2	3	4	6	8	12	18	26	35

Actuator working mode double-acting/single-acting (NC normally closed, NO normally open)

Specification	20	25	32	40	50	63	75	90	110
Specification	1/2"	3/4"	1"	11/4"	11/2"	2"	2 1/2"	3"	4"
Controlling stress	4~8
NAMUR standard air source interface	G 1/4"
Double acting actuator models	TBN032D	TBN032D	TBN032D	TBN052D	TBN052D	TBN63D	TBN75D	TBN83D	TBN92D
Single acting actuator models	TBN052SK	TBN052SK	TBN052SK	TBN063SK	TBN063SK	TBN75SK	TBN83SK	TBN92SK	TBN105SK

SCH80 / DIN · PNEUMATIC ACTUATED

UPVC / CPVC Pneumatic Ball Valve

Double-acting · Spring-return · Full port · PTFE seated

The SCH80/DIN UPVC/CPVC Pneumatic Ball Valve is an automated quarter-turn isolation valve designed for remote on-off and throttling control in corrosive and high-purity fluid systems. Manufactured to ASTM SCH80 and DIN standards, this valve integrates a pneumatic actuator with a one-piece or two-piece ball valve body. The actuator is available in double-acting or spring-return configurations, providing fail-safe positioning. The full port design maintains line flow characteristics with minimal pressure drop. The valve body is available in UPVC for general chemical service and CPVC for elevated temperatures up to 93°C. PTFE seats and seals deliver bubble-tight shut-off. The actuator mounting follows ISO 5211 standards, enabling direct mounting and easy replacement. This valve is widely used in automated process control, chemical dosing, water treatment, and industrial manufacturing systems.

DN15–DN100 Size range

PN10–PN16 Pressure rating

–20°C to 93°C CPVC range

ISO 5211 Mounting pad

Automated Operation

Double-acting or spring-return actuators enable remote control, process automation, and fail-safe positioning without operator intervention.

Bubble-Tight Shut-Off

PTFE seats provide a reliable seal against the chrome-plated or solid CPVC ball, ensuring zero leakage across the full pressure range.

Chemical Resistance

UPVC and CPVC bodies resist acids, bases, and salts. CPVC extends service to 93°C for hot corrosive media.

Full Port Flow

The ball bore matches the pipe internal diameter, providing unrestricted flow and minimizing pressure drop across the valve.

Valve Specifications

Body UPVC · CPVC

Ball Chrome-plated brass · Solid CPVC

Seats PTFE · EPDM (optional)

Connections Socket · Threaded · Flanged

Standards ASTM D2467 · DIN 8061/8062 · ISO 16139

Actuator Data

Type Double-acting · Spring-return

Supply pressure 4–8 bar

Mounting ISO 5211 · Direct mount

Rotation 90° · Adjustable stroke

Accessories Positioner · Limit switches · Solenoid

Application Areas

Chemical Automated acid dosing · Reactor feed control

Semiconductor UPW distribution · Chemical delivery systems

Energy Battery electrolyte · Cooling water control

Water Wastewater treatment · RO permeate control

Pharma DI water loops · CIP systems · Sanitary lines

Automotive Paint circulation · Parts washing · Coolant

Installation Guidelines

Actuator mounting: Ensure ISO 5211 mounting pad alignment. Use correct coupling and bracket.
Air supply: Filtered, lubricated air at 4–8 bar. Use solenoid valve for remote control.
Solvent welding: Use primer and cement specific to UPVC or CPVC. Allow full cure.
Flange bolts: Use full-face gaskets. Torque evenly to 15–20 Nm in cross pattern.
Electrical connections: Verify solenoid voltage and wiring. Use conduit for protection.
Testing: Cycle valve manually and pneumatically before placing in service.

Critical Limits

Temperature: UPVC 60°C max · CPVC 93°C max. Do not exceed seat rating.
Air pressure: Do not exceed 8 bar supply pressure. Actuator torque increases with pressure.
Not rated for steam service. Avoid rapid thermal cycling and pressure surges.
Do not use with concentrated nitric acid (>15%) in UPVC bodies.
UV exposure: Use UV-stabilized material or apply protective coating.
Actuator storage: Protect from moisture and debris. Store in clean, dry area.

Frequently Asked Questions

What is the difference between double-acting and spring-return actuators?

Double-acting actuators require air pressure to both open and close the valve. Spring-return actuators use air to open and a spring to close (or vice versa), providing fail-safe positioning in case of air supply loss. Spring-return is preferred for emergency shutdown applications.

What air pressure is required for operation?

The actuator requires filtered, lubricated air at 4–8 bar. Lower pressures may result in insufficient torque for reliable operation. Higher pressures may exceed actuator torque rating and damage the valve stem. Always verify with the actuator torque chart.

Can this valve be used for throttling control?

Yes, with a positioner and appropriate control signal (4–20 mA or 0–10 V). The pneumatic actuator provides proportional positioning, enabling accurate flow control. However, throttling service may reduce seat life compared to on-off service.

What accessories are recommended?

Common accessories include solenoid valves for remote on-off control, positioners for throttling, limit switches for position feedback, and filter-regulator-lubricator units for air preparation. Accessory selection depends on the application and control system requirements.

Selskab

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group ja Kina SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve Til fødevareindustri/bil/elektronisk leverandør og specialfremstillet SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve Til fødevareindustri/bil/elektronisk fabrik. Vi blev grundlagt i 2007 med fokus på forskning og udvikling, fremstilling, salg og service af CPVC- og UPVC-industrielle rør. Virksomheden har opnået en række certificeringer, herunder produktionslicens for specialudstyr, hygiejnelicens for vandrelaterede produkter i Zhejiang-provinsen, IS09001-certificering for kvalitetsstyringssystem, IS014001-certificering for miljøstyringssystem og IS045001-certificering for arbejdsmiljø- og sikkerhedsstyringssystem. Virksomheden har mere end 50 uafhængige immaterielle rettigheder og selvbetjente import- og eksportrettigheder. For at kunne tilbyde diversificerede produkter og bedre service har virksomheden introduceret avanceret teknologi, værktøjsudstyr og unikke råmaterialer og styringssystemer fra Tyskland og USA. Gennem årene er vores produkter blevet meget anvendt til rørledningstransport af syre- og alkalivæsker, ultrarent vand, drikkevand, rent vand af elektronisk kvalitet og industrielt spildevand inden for kemiske, metallurgiske, solcelle-, atomkraft-, lithiumbatteri-, elektroniske halvleder-, fødevare-, medicin-, bil-, industriel vandbehandling og andre industrier. I øjeblikket har ZHEYI Group etableret mere end 30 salgsselskaber over hele landet, og alle slags produkter eksporteres til Europa, Amerika, Sydøstasien og andre lande og regioner og er dybt foretrukket af indenlandske og udenlandske kunder.

Æresbevis

Nyheder

Double Containers Depart for South America – ZHEYI Group E...
Aug 31,2026
Recently, ZHEYI Group successfully completed the shipment of two full containers, both loaded and dispatched simultaneously, setting sail for the South American market. This milestone marks another step forward in our...
Lær mere
Future Trends in CPVC Piping Systems: What Industrial Buye...
Aug 26,2026
Fremtidige tendenser inden for CPVC rørsystemer handler ikke kun om selve røret. De handler om specifikationer på systemniveau: bedre højtemperaturforbindelsesdata, automatiseringsklare ventiler, strammere globale ...
Lær mere
Injection Molding Process for CPVC Fittings: From Resin to...
Aug 20,2026
Når en rørentreprenør åbner en kasse med CPVC-albuer på et kemisk anlægs arbejdsplads og ser et par stykker med lidt matte overflader eller svage striber, er årsagen sjældent råvaren. Det er næsten altid processen,...
Lær mere

Skriv en besked

Streng kvalitetskontrol

ZHEYI Group overholder princippet om "kvalitet først", anvender internationalt avanceret udstyr og råvarer af høj kvalitet, kontrollerer strengt alle produktionsled og er forpligtet til at levere pipeline-produkter med fremragende ydeevne og udsøgt udseende.

Virksomheden bruger det mest avancerede produktionsudstyr og materialer af høj kvalitet, herunder japanske Sekisui og amerikanske Lubrizol. "ZHEYI" kombinerer perfekt udsøgt produktionsteknologi med professionel ledelse, og hvert produkt gennemgår streng kvalitetskontrol - fra produktion, inspektion til endelig levering, hvilket sikrer den perfekte kombination af udseende og funktion.
Præcisionspræstationstest

Hos ZHEYI er hvert produkt omhyggeligt fremstillet, ikke kun med fokus på udsøgt æstetisk design, men også altid med fokus på fremragende iboende kvalitet. Strenge ydeevnetests sikrer, at produktet kan opretholde stabilitet og holdbarhed selv under barske forhold.:

● Densitetsprøvning: Måler materialedensitet for at sikre ensartethed og stabilitet af strukturer.
● Vicat blødgøringstemperaturtest: evaluerer blødgøringsgraden af materialer under høje temperaturforhold for at sikre produktets evne til at modstå deformation i forskellige miljøer.
● Ovntest: simulerer langvarig varmebestandighed og verificerer produktets evne til at modstå høje temperaturer i lang tid.
● Hydrostatisk test: Evaluer rørenes styrke under høje trykforhold for at sikre produktets sikkerhed og pålidelighed.
● Slagtest med faldhammer: Test produktets slagfasthed under transport, installation og daglig brug.

SCH8O/DIN UPVC/CPVC Pneumatic Ball Valve Branchekendskab

Application in the chemical industry: Advantages of UPVC/CPVC pneumatic ball valves in corrosive fluid control

In the chemical and related industrial fields, the delivery and control of corrosive fluids (such as acids, alkalis, saline solutions, organic solvents, etc.) place strict requirements on valve materials. UPVC (unplasticized polyvinyl chloride) and CPVC (chlorinated polyvinyl chloride) pneumatic ball valves have become the preferred solutions for many key industries due to their excellent corrosion resistance, lightweight structure and automatic control advantages. The following are its typical application scenarios and core advantages:

1. Chemical and industrial water treatment
Industrial wastewater/industrial water treatment: UPVC/CPVC valves can withstand wastewater containing chlorine, fluoride and strong acids (such as sulfuric acid and hydrochloric acid), avoid electrochemical corrosion problems of metal valves, and extend service life.
Photovoltaic industry: In the manufacture of solar panels, it is used to control the precise delivery of etching solutions (such as hydrofluoric acid) to ensure that high-purity fluids are contaminated.
Electronic semiconductors: Suitable for ultrapure water (UPW) systems and chemical (such as ammonia, isopropyl alcohol) distribution to avoid metal ion contamination of wafer processes.

2. Energy and Metallurgy
Nuclear power plants: In cooling water and low-concentration radioactive wastewater systems, CPVC has better radiation aging resistance than ordinary plastic valves.
Metallurgical industry: Used in pickling lines (such as hydrochloric acid and nitric acid) and electroplating liquid pipelines, resistant to high temperature corrosion (CPVC can withstand media above 90°C).

3. Life sciences and public utilities
Pharmaceutical industry: In pharmaceutical purified water and water for injection (WFI) systems, UPVC/CPVC valves comply with FDA certification and have no risk of precipitates.
Drinking water (Safe Drinking Water): In municipal water supply systems, the inner wall of the valve is smooth and scale-free, eliminating secondary pollution such as lead and rust, and complies with NSF/ANSI 61 standards.

Summary of core advantages
The king of corrosion resistance: It can resist more than 90% of strong acids, strong alkalis and organic solvents, and its lifespan far exceeds that of metal valves.
Zero pollution risk: The material is inert, no metal ion precipitation, and fluid purity is guaranteed (such as semiconductor and pharmaceutical industries).
Lightweight and low cost: easy to install, maintenance cost is reduced by more than 50% compared with stainless steel valves.
